Duct sealing system FiloSeal+ is a universal solution for sealing cables and pipes in ducts or bore holes.

FiloSeal+ is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

Telstra / TPG Approved Duct sealing kit in accordance with Telstra document ID TM00042A01 - Please click HERE

Download product sheet

FiloSeal+ compleet

The Filoform duct sealing system FiloSeal+ uses our MD+ sealant which is easily applied from a standard skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).

After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

FiloSeal+ is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses a uniquely shaped foam piece which positions neatly around the cables or pipes in the duct.

Triflex-foam

The unique design of the tri-flexible foam makes positioning and separation of the cables very simple while also providing a backing for the MD+ to be applied on.

This seal is easily installed in vertical scenarios while providing the added security of ensuring no loss of components down the duct.

FiloSeal+ is suitable for sealing several cables or pipes contained in one duct and also allows re-entry of the seal to add or remove cables or pipes as required.

  • Flexible, one component, adhesive and sealing compound in a cartridge - (310ml)
  • Kits are complete with backing and mastic to fill an empty duct of the quoted kit size
  • High levels of Gas and Water tightness
  • Excellent adhesion
  • Shows Fire resistance properties
  • Resistant against Water, Alkaline, Chemical agents
  • Resistant to, Petrol, Diesel, Ethanol, ASTM oil, LPG & Many more.
  • Suitable for sealing underground cable ducts set out within the APEA ‘Blue Book’
  • Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
  • Non-corrosive
  • Solvent-free
  • Shock absorbing
  • Non-toxic, neutral and almost odourless
  • Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
  • Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)
  • WIMES Compliant, (3.02 2013 clause 6.4.3.2 d)
  • Suitable for any shaped duct /borehole/opening
  • Quick and easy installation
  • A complete kit for one duct
  • Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
  • Suitable for renovations, can be installed retrospectively
  • Over 25 years of operational experience
  • Thames Water Approved
  • Welsh Water Approved
  • Severn Trent Water Approved
  • Southern Water Approved
  • Anglian Water Approved
  • South East Water Approved
  • Yorkshire Water Approved
  • Bournemouth Water Approved
  • Scottish Water Approved

To view the datasheet for the TELSTRA / TPG approved duct sealing system, please click HERE

Kits are complete with backing and mastic to fill an empty duct of the quoted kit size

Density 1.2 gr/cm³
Flow < 2mm ISO 7390
Colour red-brown
Skin over time (23C/55%RH) ± 15 minutes
Curing 3 mm / 24 hours
Hardness 30 shore A DIN 53505
Elongation 100% DIN 53504
Tensile strength 0.8 N/mm² DIN 53504
Operating temperature +5°C tot +40°C
Temperature resistance -40°C tot +120°C
More Information
More information

Download: FiloSeal+ disclaimer

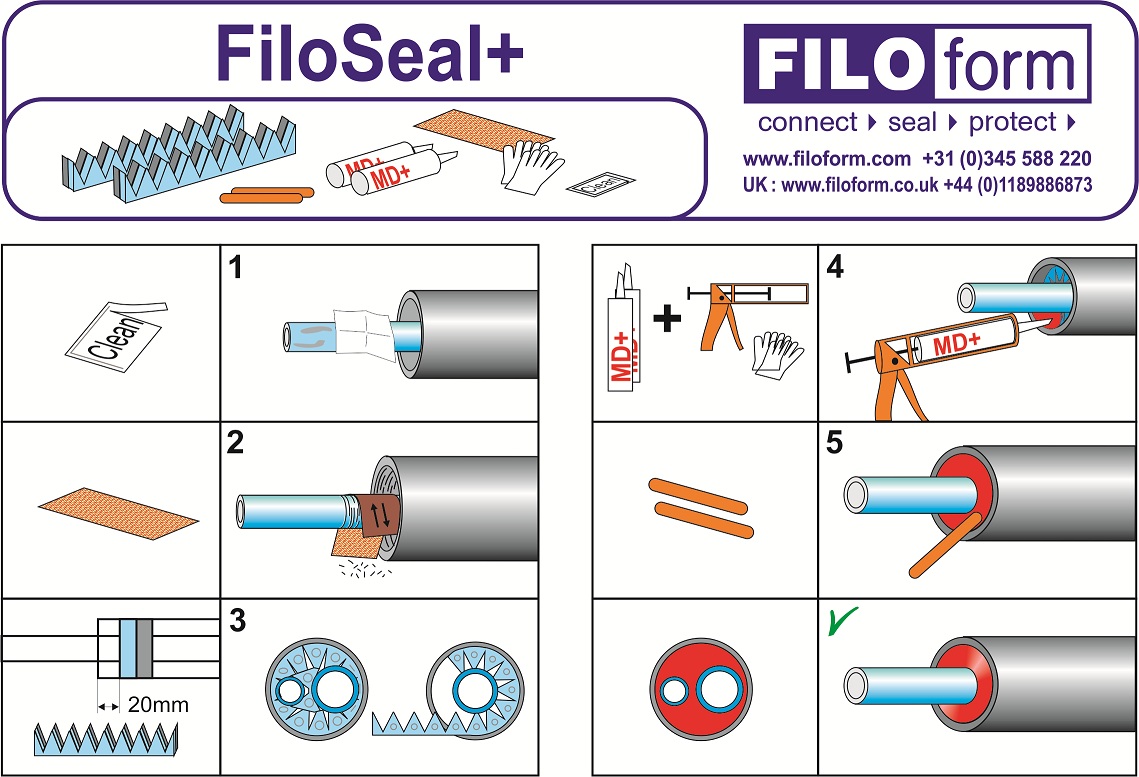

FiloSeal+ gebruiksaanwijzing

Home page product list No

Products
Grouped product items
Sku Product Name Duct diameter min.-max. (mm) Maximum cable diameter in the duct (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
282580 FiloSeal+ 125mm Ø 125 max. Ø 95 max. Order unit per piece
282590 FiloSeal+ 200mm Ø 200 max. Ø 160 max. Order unit per piece
