Sealing plugs

Go Back

Filoform sealing plugs are developed to provide an effective and simple solution to Water and Gas tight sealing requirements

  • HDPE ducts
  • Protective sleeves
  • Diamond drilled ducts
Download product sheet
  • Dirt and splash watertight
  • Plugs easily exceed thespecifications of NEN 2768 with Filoform sealing compound
  • Formed from one part, with a seam part
  • Easy to install
  • Durable sealing
  • made from high quality TPE
Image Item number Duct opening Cable diameter Dimension

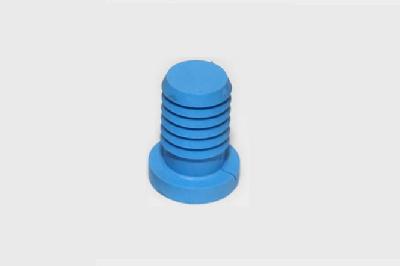

3232mm 82212

27,0 - 28,5mm

6,0 - 16,0mm

Length 49/40mm

Diameter 28,9mm

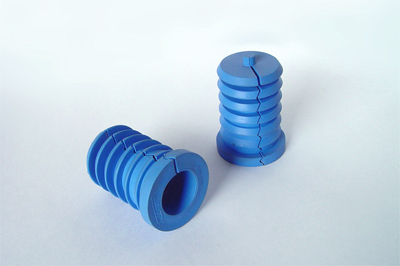

4040mm 82217 31,5 - 33,0mm 5,0 - 22,0mm

Length 60mm

Diameter 35,7mm

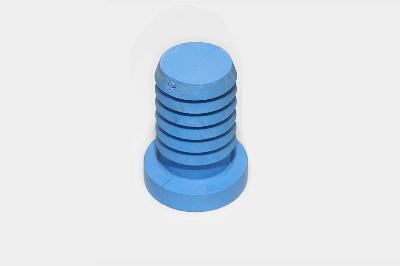

4040mm 82214 34,4 - 36,0mm 6,0 - 22,0mm

Length 63,5mm

Diameter 36,8mm

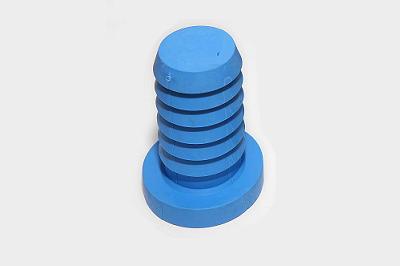

5050mm 82215 39,5 - 41,5mm 8,0 - 20,0mm

Length 84,0mm

Diameter 42,5mm

plug doorsnede

    \r
  • Material : TPE
  • \r
  • Hardness : 40 Shore A
  • \r
More Information
More information

After installing with sealing compound Filoform Fill & Seal (art.nr. 80840) or Fire & Water seal (art.nr. 80845) the Filoform sealing plugs easily exceed the specifications of NEN 2768



Home page product list No
Products
Grouped product items
Sku Product Name Duct diameter min.-max. (mm) Maximum cable diameter in the duct (mm)

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
782212 Sealingplug divisible HDPE32 / 6 -16mm 27,0-28,5 6,0-16,0 Order unit 40 pcs/carton
782217 Sealingplug divisible HDPE 40 / 5 - 22mm 31,5-33,0 5,0-22,0 Order unit 40 pcs/carton
782214 Sealingplug divisible HDPE 40 / 6 - 22mm 34,4-36,0 6,0-22,0 Order unit 30 pcs/carton
782215 Sealingplug divisible HDPE50 / 8-20mm 39,5-41,5 8,0-20,0 Order unit 10 pcs/carton
