Filoform sealing plugs have been developed to provide an effective and simple solution to all splash water and dirttight sealing requirements in HDPE ducts, protective sleeves and diamond-drilled ducts.

The sealing plugs are standard dirt and splash watertight. After mounting with sealing compoundFiloform Fill & Seal (art.nr. 80840) the Filoform sealing plugs easily exceed thespecifications of NEN 2768.

The Filoform sealing plugs are made from a high quality TPE, this material has a hardness of 40 Shore A.

Download product sheet
  • Formed from one part
  • Easy to install
  • Durable sealing
  • made from high quality TPE
Image Item number Duct Recesses
type 3
822252 25/20mm HDPE duct 3,5-4,5 and 7mm
type 3 7mm
822620 25/20mm HDPE duct 7mm
type 3 9mm
822252C 25/20mm HDPE duct 9mm
type 1
822401 40mm HDPE duct 22mm or 17mm

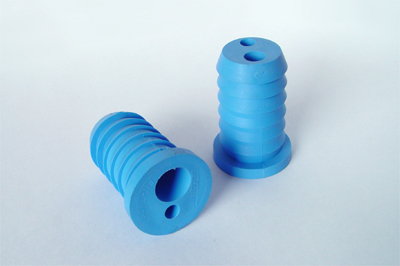

type 5
822405 40mm HDPE duct
(16,7 or 12,5 or 10,3mm) and 7mm
type 2
822402
40mm HDPE duct
7x7mm
6
822406 40mm HDPE duct 5x10mm
822614
822614 40mm HDPE duct 4x12mm
Plug coax 9/12

822503
NEN2768

50/43,6mm duct 7mm (coax 9/12)
50/43,6 14mm
822502
NEN2768
50/43,6mm duct 14mm
50/43,6 25mm
822501 50/43,6mm duct 25mm
58/50 32mm
82222 58/50mm duct 32mm
  • Material : TPE
  • Hardness : 40 Shore A
More Information
More information

After installing with sealing compound Filoform Fill & Seal (art.nr. 80840) or Fire & Water seal (art.nr. 80845) the Filoform sealing plugs easily exceed the specifications of NEN 2768



Home page product list No
Products
Grouped product items
Sku Product Name

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
7822503 Sealingplug 50/43.6mm - 7mm Order unit 50 pcs/carton
7822502 Sealingplug 50/43.6mm - 14mm Order unit 50 pcs/carton
7822252 Sealing plug (type3) Order unit 300 pcs/carton
782222 Sealingplug HDPE 58/50 / 32mm Order unit 50 pcs/carton
7822401 Sealing plug (type1) Order unit 50 pcs/carton
7822402 Sealing plug (type2) Order unit 100 pcs/carton
7822501 Sealingplug type4 HDPE50/43,6 / 25mm Order unit 25 pcs/carton
7822406 Sealing plug (type6) Order unit 100 pcs/carton
7822614 Internal plug HDPE40/33 / 4x12mm Order unit 100 pcs/carton
