Mechanicle shear head connectors

Go Back

  • Joining of stranded aliminum or copper cores in appliactions up to 11KV
  • Shear off screws to ensure a consistant and reliable connection
  • Supplied with brass gauze to improve electrical stability when joining copper cores.
Download product sheet

Filoforms mechanical ferrule for straight through joints is designed as an alternative to the ortodox sweated ferrule in applications up to 11KV, and offers certain advantages over the tradtional connector.

Fitting is relatively simple and specilised tools are not required. The connectors can be used with confidence where the sweating method of jointing is either unfeasible or uneconomic. Another important advantage is the suitability of the mechanicle ferrule for jointing situations where the use of naked flames or other heating menthods are prohibited, e.g mining or petrol-chemicle loactions.
The compelted connection on each connector has a smooth profile and assists in the formation of a compact joint.

Material - Aluminum Alloy

MF1

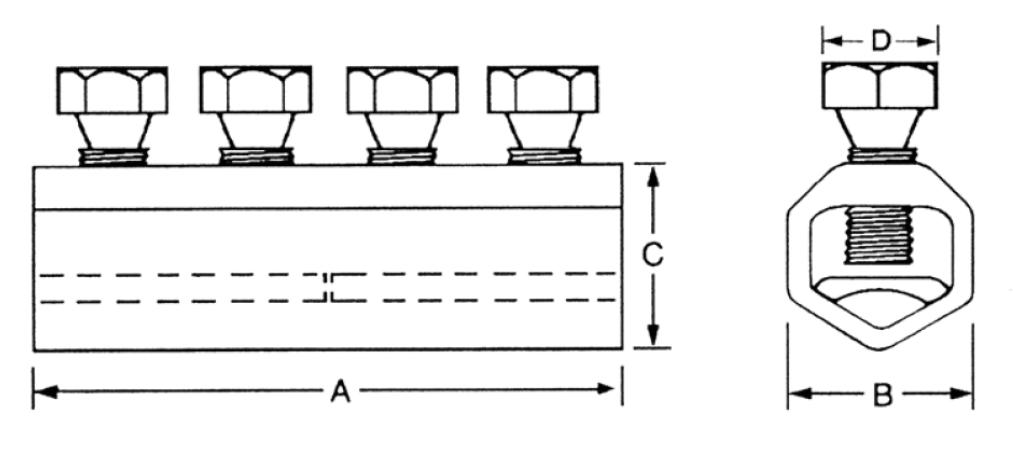

MF1 dimensions

Connector referenceB
CD
MF1/180.025.025.013.0
MF1/2100.034.032.517.0
MF1/3
120.040.041.017.0
MF1/4
120.0
47.5
51.0
19.0
MF1/3A
120.040.0
41.0
17.0
More Information
More information

Fitting Instructions

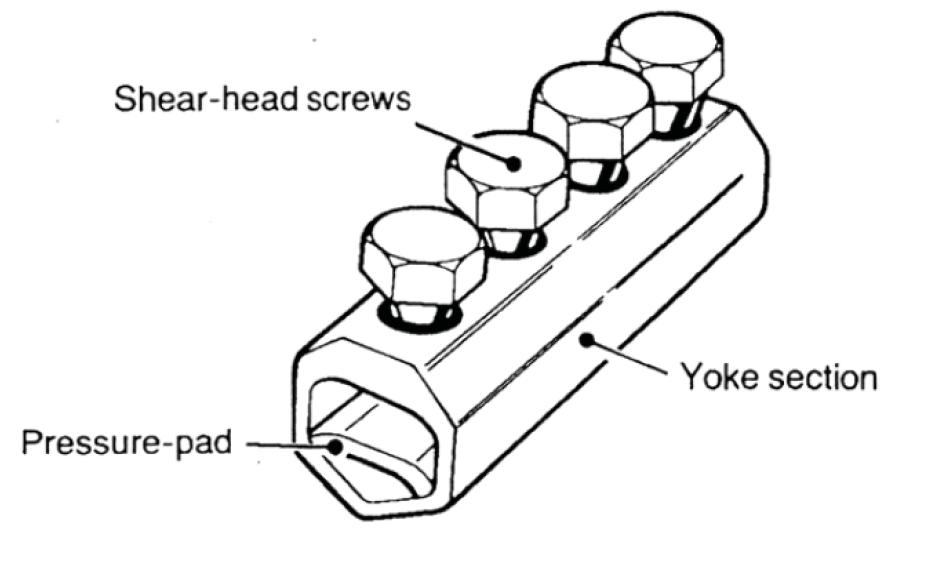

Cut the cores to length, strip the insulation from each core equal to the length of a pressure pad plus 6mm and thoroughly abrade the exposed conductors.
losen the screws, and fit the connector over one of the cores, where possible sliding the full length of the barrel back over the insulation.
Align the cores and the connector back over both conductors until centrally located. Insert the pressure pads and tighten the screws consecutivley, one turn at a time until the heads are sheared from all four screws.

* Copper conductors must be wrapped in brass gauze to improve the electrical stability of the connection.

Home page product list No
Products
Grouped product items
Sku Product Name

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
400038 MF1/1 Order unit
400040 MF1/2 Order unit
400050 MF1/3 Order unit
400060 Order unit
MF1/3A MF1/3A Order unit
