MD1-FttH multi duct

Go Back

The Filoform MD1-FttH multi duct is designed for gas and watertight sealing of FttH home entries with a maximum of 4 subducts and cables.

The sealing cap can be applied to the wall by using the special anchoring pin. This way it is not necessary to drill additional holes and to secure the cap with screws.

A gas and watertight seal is created with use of Filoform expanding PU resin type 2234. The resin package contains the right amount of resin to secure an optimal sealing. After mixing the resin and filling the cap it will start expanding. Within 30 minutes the resin will fully cure intro a stong and durable seal. Any irregularities or damage to wall will be restored with the resin.

Download product sheet
  • Universal, suitable for a maximum of 4 micro ducts and cables
  • Expansion along the borehole and on the outer wall guarantees an excellent seal
  • Tested 2.0 bar Gas & Watertight
  • Quick installation in minutes, no special tools required
  • No extensive core drilling necessary

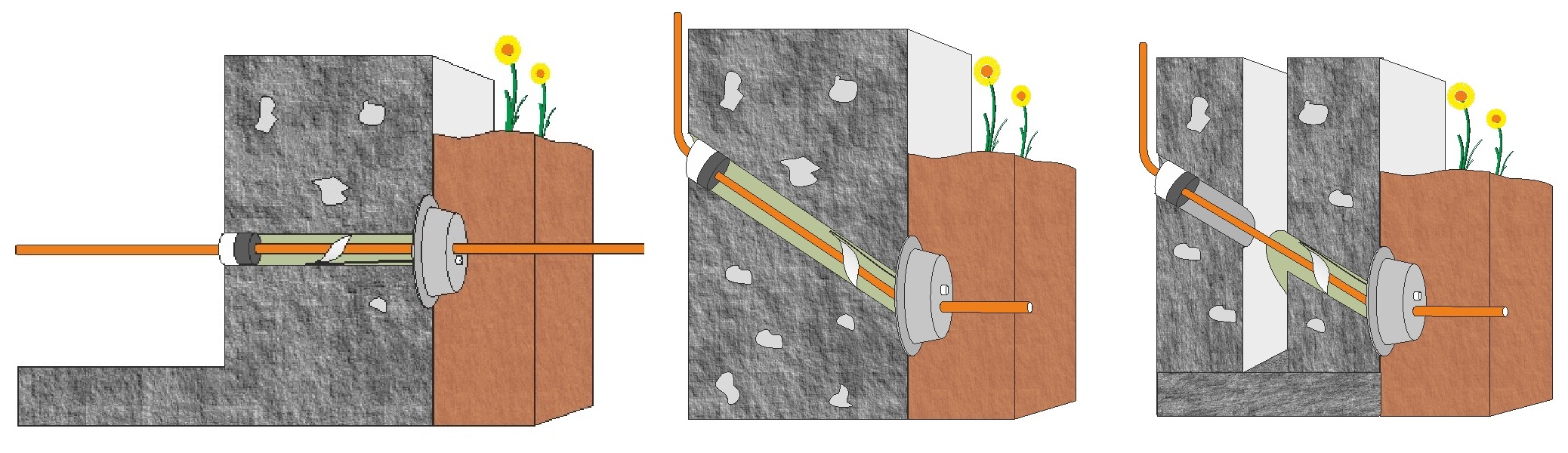

  • Also suitable for angled penetrations
  • Suitable for sealing holes in the most common wall types according to DIN 18533 and walls made from WU-Concrete, load class 1 and 2 (Watertight pressure 2,0 bar)
  • Complies with DIN 18322 underground cable laying works: cable and conduit entries into buildings are to be made watertight and gastight
  • High mechanical strength, resists ground movement, shocks and vibrations
  • Supplied as one complete kit for sealing of one house connection
  • Over 30 years of practical experience, installed in many Telecom / FO network

Selection table

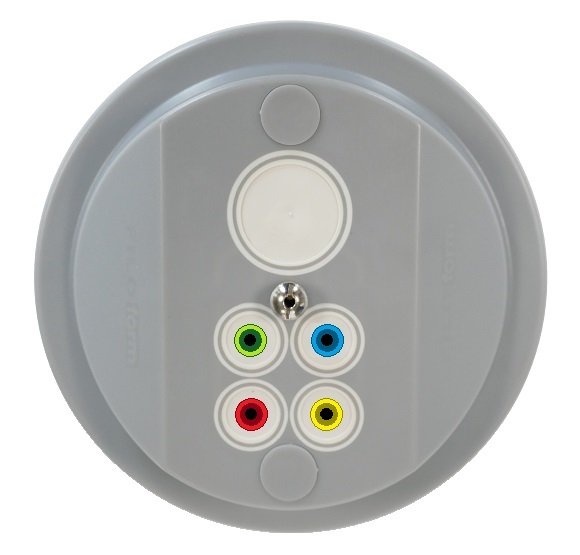

FttH duct seal 4x

Small openings
max. Ø 12,5mm

Diameter cable/subduct Number of cables/subducts Diameter bore hole Item
4mm 1 - 4 16mm - 32mm 80217
5mm 1 - 4 16mm - 32mm 80217
6mm 1 - 4 16mm - 32mm 80217
7mm 1 - 4 16mm - 32mm 80217
8mm 1 - 4 16mm - 32mm 80217
10mm 1 - 3 32mm 80216
10mm 4 40mm 80216
12mm 1 - 3 40mm 80216
12mm 4 50mm 80216

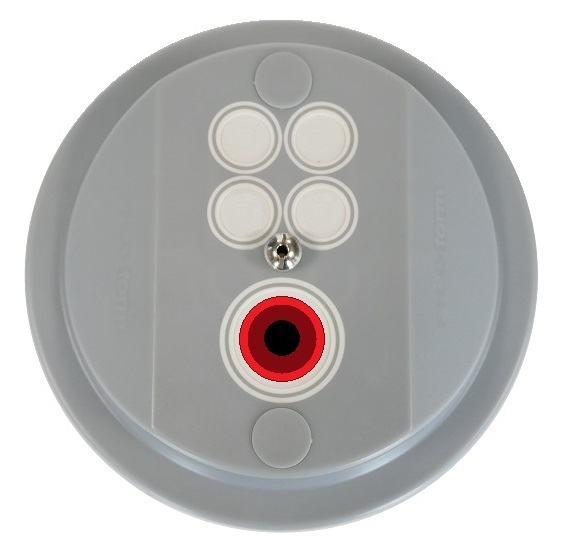

MDI FttH 1x

Large opening
max. Ø 20mm

Diameter cable/subduct Number of cables/subducts Diameter bore hole Item
14mm 1 32mm 80216
16mm 1 32mm 80216
18mm 1 32mm 80216
20mm 1 32mm 80216

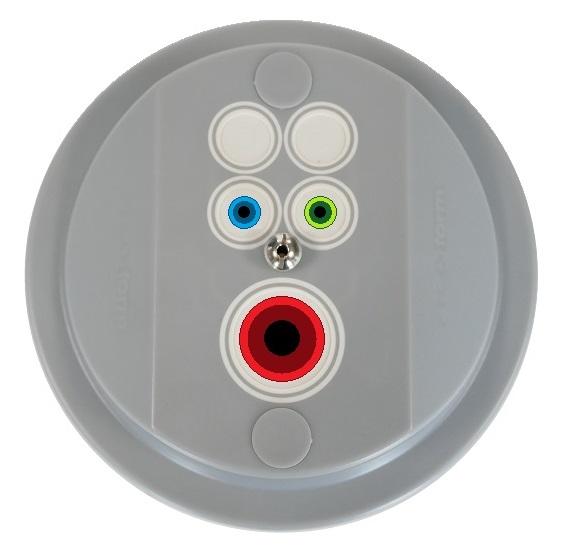

FttH duct seal 1x14-20mm / 2x4-12mm

Combination

max.
1xØ20mm
2xØ12,5mm

Diameter cable/subduct Number of cables/subducts Diameter bore hole Item
1x 14mm
2x 4mm - 8mm
3 40mm 80216
1x 14mm
2x 10mm - 12mm
3 50mm 80216
1x 16mm
2x 4mm - 8mm
3 40mm 80216
1x 16mm
2x 10mm - 12mm
3 50mm 80216
1x 18mm
2x 4mm - 8mm
3 40mm 80216
1x 18mm
2x 10mm - 12mm
3 50mm 80216
1x 20mm
2x 4mm - 8mm
3 40mm 80216
1x 20mm
2x 10mm - 12mm
3 50mm 80216

Dimensions cap

Outer diameter Inner diameter Height
132 mm 106 mm 30 mm

Specifications expanding resin

Properties Unit Value
Start time expansion seconds > 95
End time expansion minutes 15
Compressive strength N / cm² > 100
Gas and water tightness 1,0bar 30 days no leakage
Gas and water tightness 2,0bar 24 hours no leakage
Volume consistency cube 10 x 10cm no change
temperature Cycles, -20°C tot +40°C 10 consecutive cycles no leakage
Vibration test 10 Hz/amplitude 3mm 240 hours no leakage
axial tensile force diameter x 10 N no leakage
Resistance to bending cables 45° in 2 directions >250mm no leakage
Expansion polyurethane foam in pipe cm < 40
Temperature resistance °C +120
Chemical resistance
0,1N Na₂SO₄ 30 days no degradation
0,1N NaCl 30 days no degradation
0,1N H₂SO₄ 30 days no degradation
0,1N NaOH 30 days no degradation
Diesel 30 days no degradation
Gasonline 30 days no degradation
Resistance
Molds   good
Rodents   good
Shelf life months minimal 30
