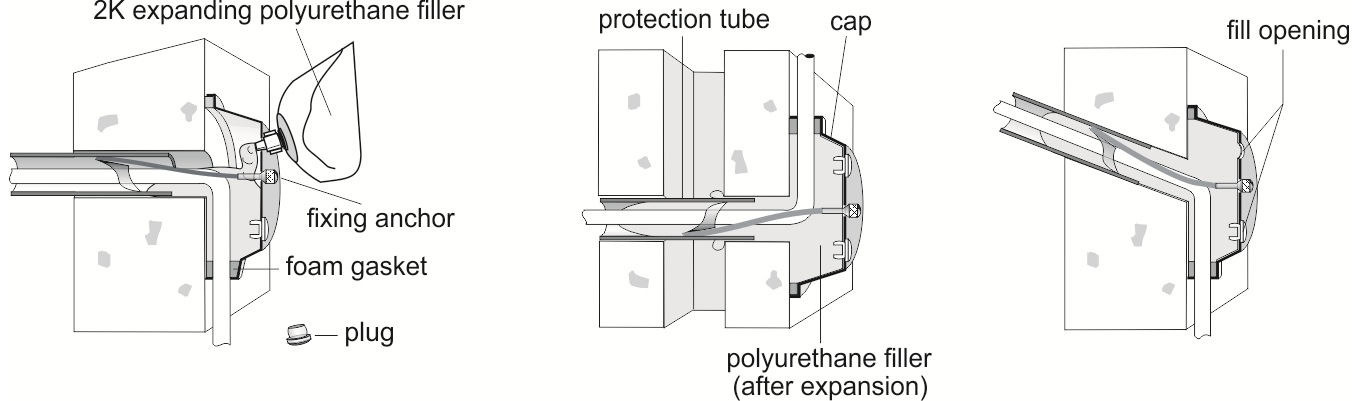

Duct sealing system MD I has been developed for sealing ducts containing pliable cables such as coax and rubberised cables, which can be easily bent to a right angle.
This system allows these usually vulnerable cables to be sealed anywhere along a wall where the cable enters a building
Suitable for ducts with a diameter of 16mm up to 32mm and cables or pipes with a diameter up to 25mm
All our duct sealing systems are specified and used by major Electrical, Gas, & Water Utility companies in the UK and Benelux countries.
Item number | Outer diameter | Inner diameter | Height |
80221 | 104 mm | 72 mm | 30 mm |
80223 | 132 mm | 106 mm | 45 mm |
Properties | Unit | Value |
Start time expansion | seconds | > 95 |
End time expansion | minutes | 15 |
Compressive strength | N / cm² | > 100 |
Density 0,5bar | 30 days | no leakage |
Density 5m water column | 30 days | no leakage |
Volume consistency | cube 10 x 10cm | no change |
Temperature Cycles, -20°C tot +40°C | 10 consecutive cycles | no leakage |
Vibration test 10 Hz/amplitude 3mm | 240 hours | no leakage |
Axial tensile force | diameter x 10 N | no leakage |
Resistance to bending | cables 45° in 2 directions >250mm | no leakage |
Expansion polyurethane foam in pipe | cm | < 40 |
Chemical resistance | ||
0,1N Na₂SO₄ | 30 days | no degradation |
0,1N NaCl | 30 days | no degradation |
0,1N H₂SO₄ | 30 days | no degradation |
0,1N NaOH | 30 days | no degradation |
Diesel | 30 days | no degradation |
Gasoline | 30 days | no degradation |
Resistance | ||
Moulds | good | |
Rodents | good | |
Shelf life | months | minimal 30 |
