For easy gas- and watertight sealing of cables in miniducts.
The miniduct seal is easy to mount on new installations and existing installations. Thanks to the clever design, shifting the seal over the fiber now belongs to the past. Due to the compact design this seal can be installed in every situation, even in locations with difficult access.
- Gas- and water tight up to 0,5 bar
- Suitable for retro fitting
- Easy installation
- No need to slide the seal over the glass fibre for installation
- Slim design
- Other versions available upon request
Click here to select the correct product

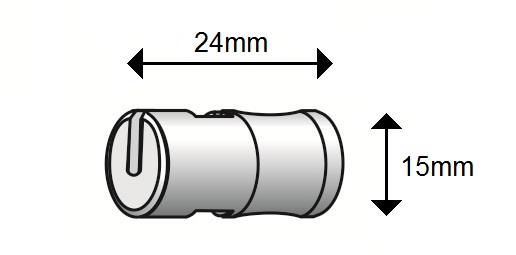

Dimensions
Technical specifications
| Dimensions | 24mm x 15mm |
| Plastic housing | PC |
| Sealing plug | TPE |
| Sealing | up to 0,5 bar |
Pull strenght duct seal from the duct
| Duct size | Seal type | |||||
| OD | 823554.x | 823555.x | 823556.x | 823557.x | 823558.x | 8235510.x |
| 4 | >20 N | |||||
| 5 | >20 N | |||||
| 6 | >20 N | |||||
| 7 | >20 N | |||||
| 8 | >50 N | |||||
| 10 | >100 N |
Values are indications, true values may depend on cables, duct and field installations.
The measure-speed is 100mm/min
Temperature 20°C
