Divisible duct seals 40mm

Go Back

Suitable for Gas and Watertight sealing of 40mm HDPE ducts, which contain mini/micro ducts and / or (fibre optic) cables.

The modular system will guarantee easy installation of various different cable and duct configurations. Our system is divisible so can be applied at installation or afterwards.

The rubber inserts can be custom designed for your specific needs and configuration and will contain (temporary) blind plugs to make the system more flexible at the installation site.

Download product sheet
  • Gas and watertight ≥ 0,25 bar
  • Suitable for retrofitting
  • Easy installation
  • Slim design
  • Includes cores of the recesses
  • Other versions available upon request

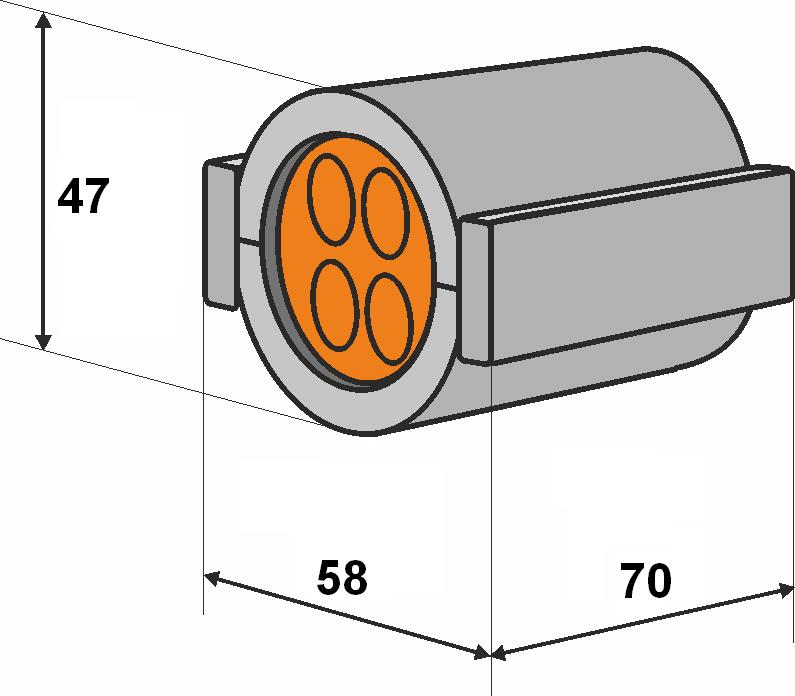

40mm ductsealing

Plastic shells glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0,25 bar (0.50 bar can be achieved, please contact out tecnical department)
Pull-out force duct seal vs duct ≥ 1000N
More Information
More information

Contents

  • Plastic shells (2 items)
  • Closing keys (2 items)
  • Synthetic rubber plug for cavity shapes (1 item)
  • Illustrated installation instructions

Divisible duct seal

Home page product list No

Click here to download the video.

Products
Grouped product items
Sku Product Name Configuration

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
7822623F Duct seal HDPE 40/24x4mm 24x4mm Order unit 10 pcs/carton
7822681F Duct seal HDPE 40/2x7+1x12mm 2x7+1x12mm. Order unit 10 pcs/carton
7822696F Ductseal HDPE 40/7x7+7x3mm 7x7mm+7x3mm Order unit 10 pcs/carton
7822621F Duct seal HDPE 40/8x7mm+12mm 8x7mm + 1x12mm Order unit 10 pcs/carton
7822624F Duct seal HDPE 40/10x7mm 10x7mm Order unit 10 pcs/carton
7822642F Duct seal HDPE 40/1x10mm+3x7mm 1x10mm +3x7mm Order unit 10 pcs/carton
7822662F Duct seal HDPE 40/3x10mm+1C8-18mm 3x10mm + 1C8-18mm Order unit 10 pcs/carton
7822690F Ductseal HDPE 40/4x10+4x7 mm 4x10mm+4x7mm Order unit 10 pcs/carton
7822694F Ductseal HDPE 40/4x10+1C6-14mm 4x10mm+1C6-14mm Order unit 10 pcs/carton
7822640F Duct seal HDPE 40/5x10mm 5x10mm Order unit 10 pcs/carton
7822659F Duct seal HDPE thin wall 40/7x10mm 7x10mm Order unit 10 pcs/carton
78227003F Ductseal HDPE 40/1xC11-16-22mm 1xC11-16mm Order unit 10 pcs/carton
7822663F Duct seal HDPE 40/2x12mm+1C8-18mm 2x12mm + 1C8-18mm Order unit 10 pcs/carton
7822625F Duct seal HDPE 40/4x12mm 4x12mm Order unit 10 pcs/carton
7822688F Ductseal HDPE 40/1x14 mm 1x14mm Order unit 10 pcs/carton
7822643F Duct seal HDPE 40/3x14mm 3x14mm Order unit 10 pcs/carton
7822641F Duct seal HDPE 40/2x15mm+2x8,-13,4mm 2x15mm + 2x8,4-13,4mm Order unit 10 pcs/carton
7822698F Ductseal HDPE 40/1x24mm 1x24mm Order unit 10 pcs/carton
