DB bundle breakout seal

Go Back

Filoform DB bundle breakout seals have been developed to provide an effective and simple solution to all Gas and Watertight duct sealing requirements.

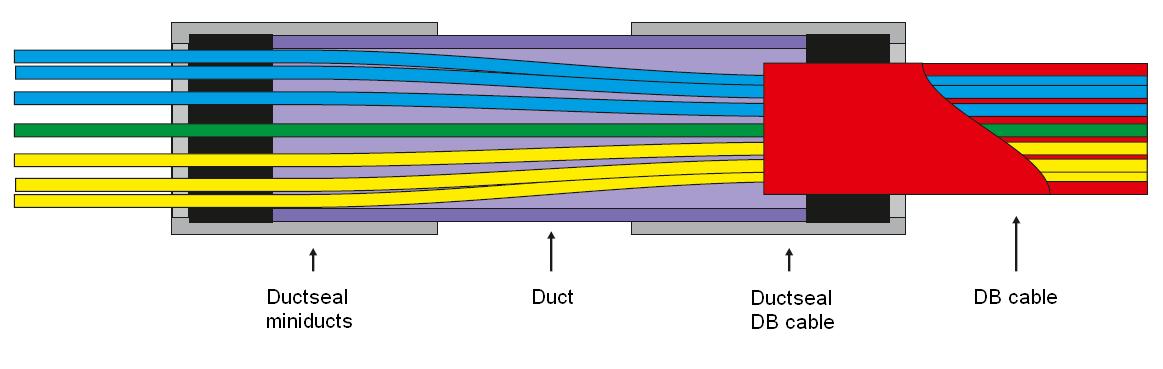

Depending on the type of DB bundle, space is created in a 32, 40, 50 or 63mm duct to spread the miniducts from the DB bundle. These are sealed by the divisible duct sealing set. Subsequently, a similar seal is made between the DB bundle and the HDPE duct.

The advantage of this solution is that in many underground closures, and standard ports for sealing to ducts with a diameter of 32, 40, 50 or 63mm are provided. With this solution, you can make a simple waterproof entry of a DB bundle.

Download product sheet

db bundle seal

  • Gas and Watertight ≥ 0.25 bar.
  • Easy installation
  • Narrow design
  • Other versions available on request

db bundle seal

Plastic shells glassfibre reinforced
Closing key glassfibre reinforced
Sealing plug EPDM
Sealing up to 0.25 bar (0.50 bar can be achived, (please contact our technical departement)
Pull-out force duct seal vs duct ≥ 1000N
More Information
More information

Contents

  • HDPE pipe
  • Sealing set for the sealing between the individual ducts of the DB-bundle and the HDPE duct
  • Sealing set for the sealing between the DB-bundle and the HDPE duct.
  • Illustrated installation instructions

DB bundle

Home page product list No
Products
Grouped product items
Sku Product Name Configuration

Enter the quantities you want to order / request.


Keep the quantities equal to the Order unit

Order unit
Qty
7822741 DB bundle breakout seal 40/3x14mm 3x14mm Order unit 2 pcs/carton
7822750 DB bundle breakout seal 50/7x12mm 7x12mm Order unit 2 pcs/carton
7822753 DB bundle breakout seal 50/9x7mm+1x14mm 9x7mm+1x14mm Order unit 2 pcs/carton
7822760 DB bundle breakout seal 63/7x14mm 7x14mm Order unit 2 pcs/carton
7822770 DB bundle breakout seal 63/24x7mm+1x14mm 24x7mm + 1x14mm Order unit 2 pcs/carton
